Ice Packs

Features:

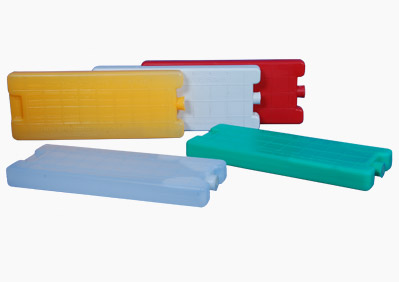

Ice Packs are a simple, convenient and cost effective way to keep your perishables cold for hours and hours during transit.

Directions of Use

- Freeze hard before use.
- Can be re-frozen, if not leaked or punctured



Ice Pack Contents

Ice packs ( cooling unit ) are plastic blow moulded article which are manufactured by combination of LDPE / HDPE Polyethylene granules which meet the standard requirement specification of polythene granules which are safe for food stuffs & pharmaceuticals products. The mouth of the ice packs ( cooling unit ) is capped with plug made up of LDPE ( Low Density Polyethylene ) granules and sealed by heat to avoid any leakages & damage to the ice pack.

The ingredients used inside the Ice packs contains a BRINE solution prepared by a mixture of super salts, white fluppy powder which are High molecular weight cross linked polymer of acrylic acid & demineralized water which are non – toxic & non- hazardous. The polymers are in its dry form & a powder of crystalline structure. The Polymers are soluble in water & are HYGROSCOPIC in nature. The polymers are an extremely efficient rheology modifier capable of providing high viscosity and forms sparkling gels.

NOTE

  • The Contents are NON TOXIC & NON HAZARDOUS
  • No special precautions required

Physical Properties

  • Color : Colorless
  • Odor : Odorless

Toxicity

The ingredients inside the Ice Pack are high molecular weight polymer. It is not absorbed by body tissues and is totally safe for human oral consumption. Test for toxicological tolerance show that it does not have pronounced physiological action and is non toxic.

Chilling Properties

On refrigeration Ice Pack can retain the cool temperature level for 48 hours to 72 hours. Low temperature necessary for vaccines, can be store in pre-refrigerated COOLENT gel, making it as a suitable medium for transportation of the vaccines

Storage

  • Store in original end packing cartoon in cool dry place at temperature not exceeding 30 °C
  • Do not stack more than 3 cartoons

Caution

  • The contents should not be eaten or used in drinks
  • Should be discarded, if found leaked or punctured

Advantages

  • Ice Packs provide longer-lasting, high performance thermal protection for valuable shipments.
  • Ice Packs contains special Brine solution, which is non-toxic and has a property to retain temperature for 48 to 72 hours, provided suitable insulated boxes are used for packing.
  • Ice Packs are ideal for transporting vaccines and other perishables.
  • Ice Packs can be re-frozen any number of times for multiple use (provided they are not leaked or punctured)

Applications Of Ice Packs

  • For Medical / Pharmaceutical / Veterinary : Icepacks can help keep products cold in transit and maintain desired shipping temperatures for drugs, blood, vaccines and lab samples etc.
  • For Foods : Icepacks will freeze and keep fresh food, fruit, vegetables & also maintain temperature of cold food items during transportation, display, use or storage.
  • For Transportation : Icepacks will maintain refrigerated temperatures both in transit and while in storage or on shipping docks.
  • For Refrigerator : Icepacks will save electricity, keep food fresh and keep cold in condition of refrigerator being off electricity.


Product Specification

SR. NO.   300 ml Bottle Ice Packs
1   Size 215 mm x 85 mm x 21 mm
2   Packing 60 Nos. of 300 ml Bottle Icepacks per cartoon

Edition No. Gm - 001
Specification No Gm - 101
Name Of The Product I C E Packs

SR.NO.   Parameters Specifications
1   Color As per Requirement
2   Weight As per Requirement
3   Volume 270 ml ( + / - 15 ml )
4   Width of ICE PACK 21 – 24 mm ( dependent on weight )

Body Dimensions

SR.NO.   Parameters Specifications
A   Total Height 215 mm ( + / - 2 mm )
B   Height of mouth part 10 mm ( + / - 1 mm )
C   ID of mouth 10.5 mm ( + / - 0.1 mm )
D   OD of the mouth at edge 15.5 mm ( + / - 0.2 mm )
E   WALL THICKNESS 2.2 mm ( + / - 0.2 mm )
F   BOTTOM LENGTH 80 mm ( + / - 2 mm )
G   LENGTH OF SHOULDER 22 mm ( + / - 0.5 mm )
H   Height of body 205 mm ( + / - 2 mm )

Plug Dimensions

SR.NO.   Parameters Specifications
1   Description Round plug made of Transparent shade LDPE
2   Weight 0.5 grams ( + / - 2 % )
3   OD of lip 14 mm ( + / - 0.2 mm )
4   OD below lip 13 mm ( + / - 0.2 mm )
5   ID of lip 8.65 mm ( + / - 0.2 mm )
6   Lip thickness 1.25 mm ( + / - 0.1 mm )
7   Total Height 10.10 mm ( + / - 0.2 mm )
